// project

PaymentsLab-KMP

An Integration Lab for the Android payments ecosystem: every gateway behind one abstraction, with a live look at what actually happens on each transaction.

The brief

Payments is the hardest integration surface on Android: every gateway ships a different SDK, most of them are Activity-callback-era, the client can lie about the outcome, and the interesting logic (signatures, webhooks, idempotency, recovery) lives on the server. PaymentsLab-KMP runs real payment flows across a 70-gateway catalog behind a single PaymentGateway abstraction, and visualizes them step by step. A Ktor server does the order creation, signature verification and webhook reconciliation a real integration requires. Beyond one-shot pay-in it models five money-movement rails.

What shipped

  • 48-module registry (17 local + 31 composed) spans 70 cataloged payment gateways.
  • Five money-movement rails plus split payments, all idempotency-keyed and MOCK_MODE-honest.
Kotlin MultiplatformCompose MultiplatformKtorAndroidiOSRoom
GitHub Doori (sibling KMP app) Install it 48 modules · 70 gateways · 5 rails
A payments client has no room for probably soon
Gateway number 71 is one line, and nothing checks it soon
My README said 66 gateways. The code said 70. soon
built on
kmp-build-logic
kmp-toolkit
written up in

no public push in the last 20 events

// case study

The short version

The problem

Every payment gateway ships a different, mostly Activity-callback-era SDK, and the client can lie about the outcome: the logic that actually decides whether money moved (signatures, webhooks, idempotency, recovery) has to live somewhere the client can't fake it.

The decision

Put a Ktor server between the client and the truth: order creation, signature verification and webhook reconciliation happen there, a Room journal is written before the SDK even launches so a process death mid-payment is always recoverable, and a redaction layer keeps every secret and PII out of logs and screens.

The result

70 cataloged gateways now sit behind one PaymentGateway contract, with a client-side Success read only as a hint until the server confirms it. The same discipline now extends to five money-movement rails beyond one-shot checkout, every one of them MOCK_MODE-honest until real sandbox keys are set.

70 gateways cataloged

Watch the two-minute tour ↓
Evidence: 70 cataloged gateways now sit behind one PaymentGateway contract, with a client-side Success read only as a hint until the server confirms it. The same discipline now extends to five money-movement rails beyond one-shot checkout, every one of them MOCK_MODE-honest until real sandbox keys are set.
Go deeper

Analyst view: PaymentsLab-KMP draws on 6 stack entries and links to 4 outside sources, and shares 2 shared foundations with 3 other builds.

// guided tour

The product, narrated

A recorded walkthrough of the app with sample content. Tap the speaker for the voiceover, or read the captions. In-app figures describe the recorded demo, not live production activity.

PaymentsLab-KMP — narrated product tour

// shipping

Where you can actually get it

Every line below is checkable. Add the repository in an F-Droid client and the app installs, signed with the same key its listing pins.

  • F-DroidLive in a self-hosted repository. 33 MB, signed, tagged NonFreeDep and NonFreeNet because integrating real gateway SDKs is the whole point of the app. open
  • GitHub ReleasesSigned APK per tag. open

// pipeline

The build that put it there

Read live from GitHub Actions and the F-Droid index. Not a badge: the actual runs, what shipped, and the certificate you can check the download against.

reading the pipeline

48

Gradle modules (17 local + 31 composed)

70

gateways cataloged

5

money-movement rails

1

PaymentGateway contract

// multiplatform

One codebase, every surface

Recorded app screens and, where available, the running build. Sample content inside a screen is separate from the source-linked project metrics.

Android screen (1 of 5)

// design notes

How it works

The one idea worth stealing

A client-side Success is a hint, never proof. Only the server decides the true state, after signature verification and webhook reconciliation. A server that owns price and truth, a client that always confirms before trusting, a journal written to Room before the SDK launches so a process death mid-payment is always recoverable, and a redaction layer so no secret or PII ever renders or logs.

48 modules, 70 gateways

One Gradle module per native-SDK provider is contributed into a registry via Koin's getAll<PaymentGateway>(), so adding gateway N+1 touches no existing code. There are 17 local modules plus 31 composed from kmp-toolkit (19 of kmp-toolkit's 20 standalone provider gateway modules). The in-app catalog spans 70 registered gateways: 15 native-SDK integrations, an internal wallet ledger, 44 hosted-webview gateways behind one archetype, 7 mobile-money flows and 3 catalog-only / KYC-gated entries, each with its own status badge and region.

Five money-movement rails + split payments

Beyond one-shot checkout the server models payouts (/payouts: money out to a beneficiary), mandates & subscriptions (/mandates + scheduled debits and cancel), a card vault (/vault: tokenize once, charge later by id), marketplace Connect onboarding (/connect: sub-merchant KYC + split payouts) and an internal double-entry wallet ledger (/wallet: seed / debit / refund against a real running balance), plus split payments, a two-leg orchestration that compensates if one leg fails. Ten provider modules ride these rails (Paystack, Flutterwave, Paytm, Xendit, M-Pesa, Peach, NMI, Stripe Connect, plus wallet and a record-only cash gateway), every one MOCK_MODE-honest until real sandbox keys are set.

One contract, real SDKs

Razorpay, Cashfree, Stripe (+ Google Pay), Square, Omise and a raw UPI intent flow all implement the same tiny PaymentGateway interface. The Activity-callback SDKs are bridged into suspending coroutines by a PaymentHost that never leaks an Activity upward. A generic hosted-webview archetype covers the whole class of gateways with no native SDK behind the same contract. Env-backed credentials auto-degrade from SANDBOX_READY to MOCK_MODE honestly instead of silently pretending to work.

Pure, replayable state machine

The lifecycle is a pure (State, Event) → Effects reducer, zero coroutines/DI/IO, with the orchestrator just executing its effects. A payment's path is a recorded event log that replays byte-for-byte identically, the auditing property money movement wants. The MVI base comes from my own kmp-toolkit library, shared with other apps.

VAPT-grade security

core:security holds real Android Keystore AES-256-GCM at-rest encryption, FLAG_SECURE + recursive tapjacking protection, device-integrity checks (root, emulator, debugger, Frida/Xposed hook detection, SSL-pinning-bypass detection), and a certificate-pinning config, with detection kept deliberately separate from enforcement policy.

// architecture

How it's built

Gateway registry: adding provider N+1 touches no existing code

Client Success is a hint: the server decides truth

Five rails beyond one-shot pay-in

// under the hood

Tech stack

Architecture

  • Kotlin Multiplatform
  • Compose Multiplatform
  • 48 Gradle modules (17 local + 31 composed)
  • Koin registry (getAll)
  • kmp-toolkit (shared MVI base)

Backend & rails

  • Ktor server
  • HMAC-SHA256 signatures
  • Webhook reconciliation
  • Payouts · mandates · vault · connect · wallet ledger

Data & Security

  • Room (process-death journal)
  • Android Keystore AES-256-GCM
  • Certificate pinning
  • Device-integrity checks

Build & quality

  • kmp-build-logic convention plugins
  • Roborazzi screenshot tests
  • ktlint
  • detekt
  • GitHub Actions CI

// gateways

Compare two providers

Pick two of PaymentsLab-KMP's 75 cataloged gateways to compare region, archetype and shipped status.

Region
Global
Archetype
Hosted webview
Status
MOCK_MODE
Region
Ethiopia
Archetype
Hosted webview
Status
MOCK_MODE

One contract, five money-movement rails

// directions

Same screen, 3 treatments

Pick a treatment to see it whole. Where one ships a dark counterpart, drag the divider to compare the two faces of it — same layout, same content, only the light changes.

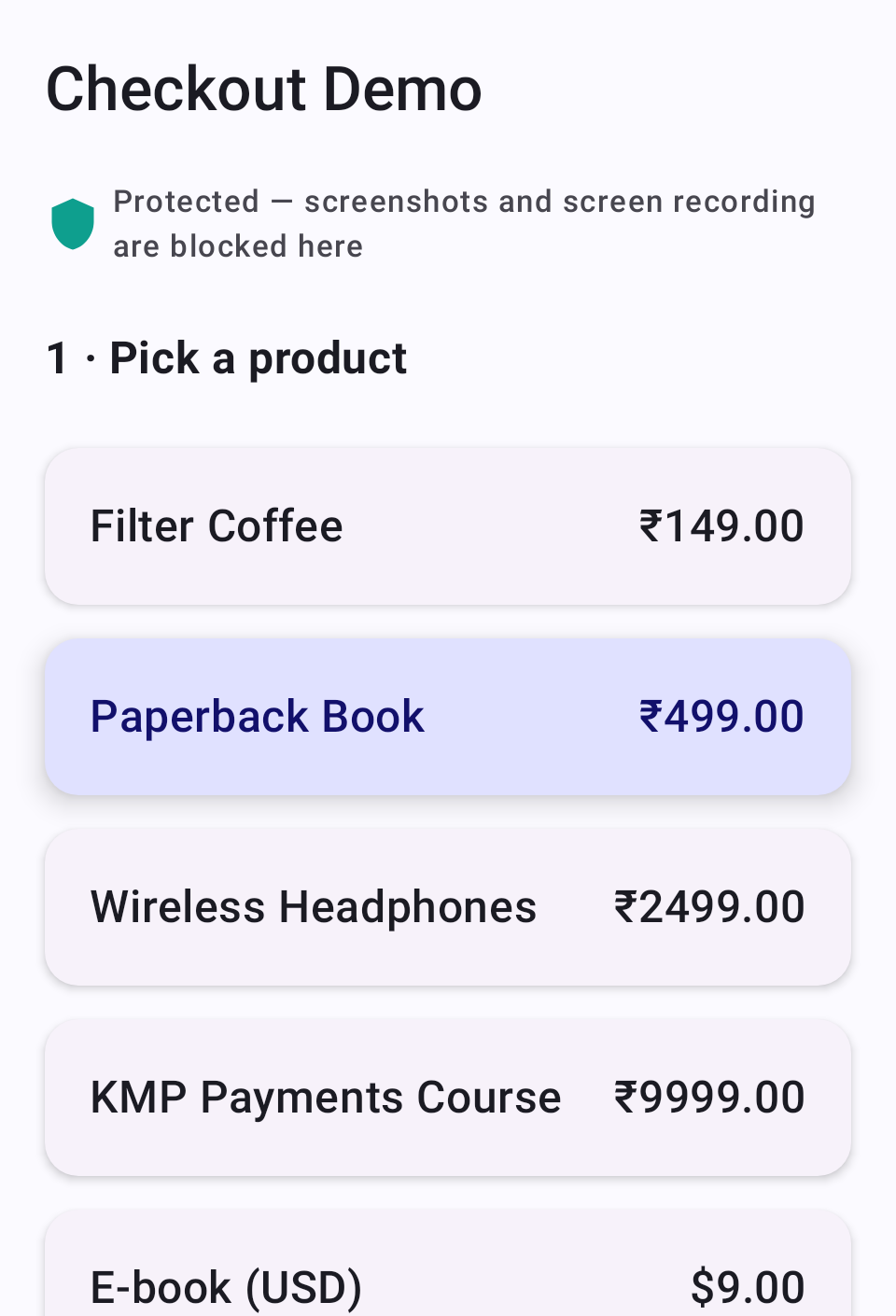

checkout lifecycle — order summary, light
order summarysingle mode — no dark counterpart

// gallery

Screens (28)

Swipe or use the arrows · tap a screen to enlarge
