// project
An Integration Lab for the Android payments ecosystem — every gateway behind one abstraction, with a live look at what actually happens on each transaction.
Payments is the hardest integration surface on Android: every gateway ships a different SDK, most of them are Activity-callback-era, the client can lie about the outcome, and the interesting logic (signatures, webhooks, idempotency, recovery) lives on the server. PaymentsLab runs — and step-by-step visualizes — real payment flows across a 66-gateway catalog behind a single PaymentGateway abstraction, backed by a Ktor server that does the order creation, signature verification and webhook reconciliation a real integration requires — and, beyond one-shot pay-in, models five money-movement rails.
// guided tour
A storyboarded walkthrough of the real app — tap the speaker for the voiceover, or read along with the captions.
0
Gradle modules (15 local + 25 composed)
0
gateways cataloged
0
money-movement rails
0
PaymentGateway contract
// multiplatform
The real screens (and, where it's live, the running build) per platform — not a mockup.
// deep dive

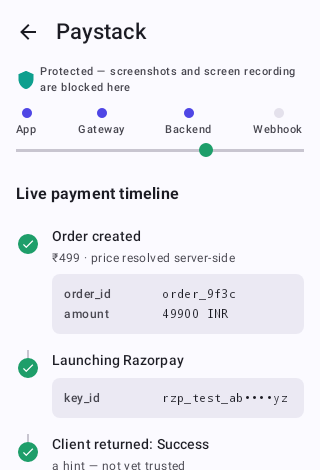

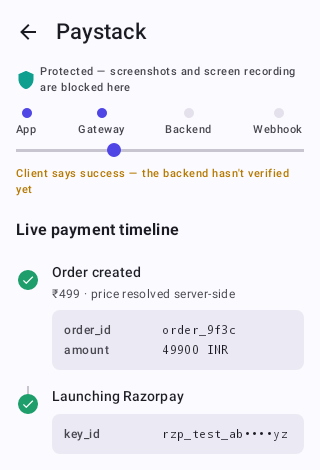

A client-side Success is a hint, never proof. Only the server — after signature verification and webhook reconciliation — decides the true state. A server that owns price and truth, a client that always confirms before trusting, a journal written to Room before the SDK launches so a process death mid-payment is always recoverable, and a redaction layer so no secret or PII ever renders or logs.

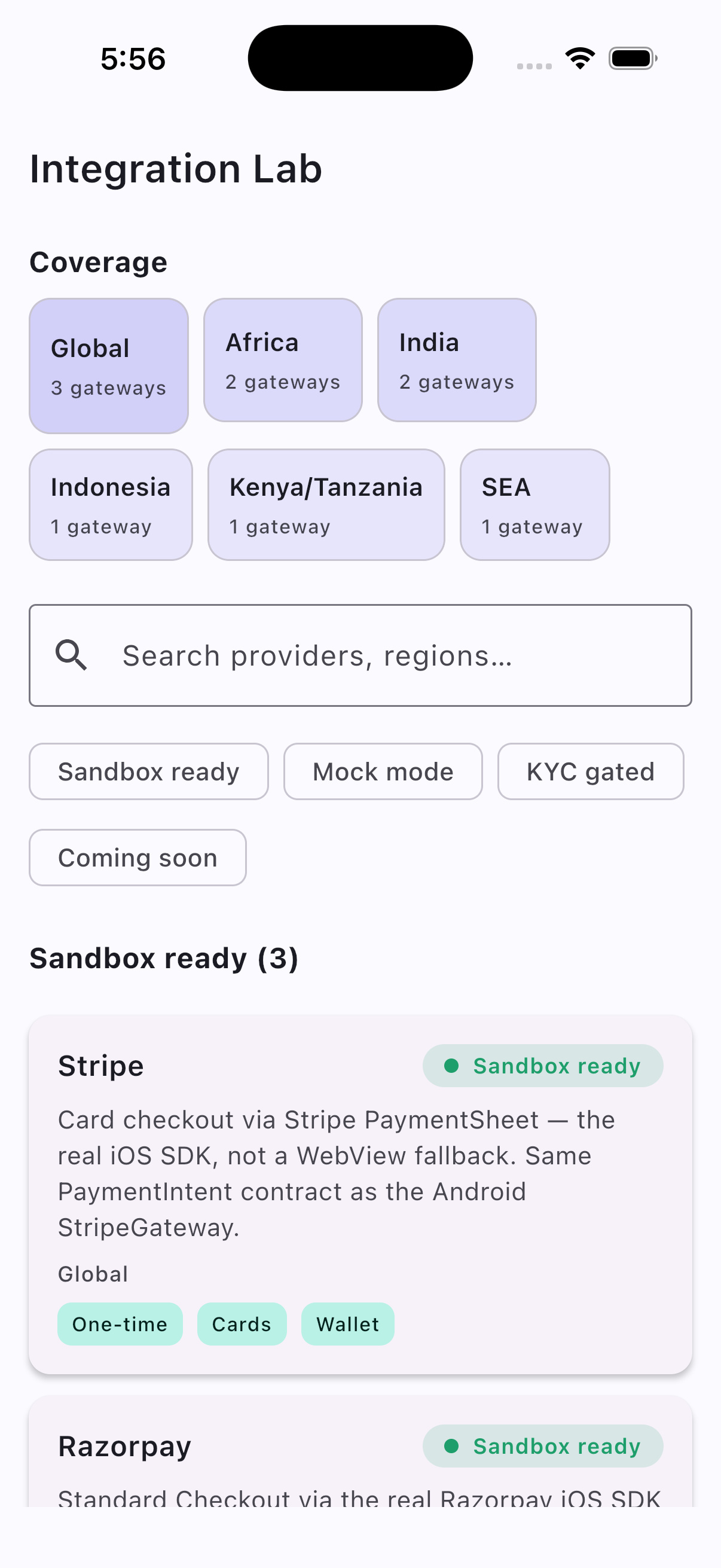

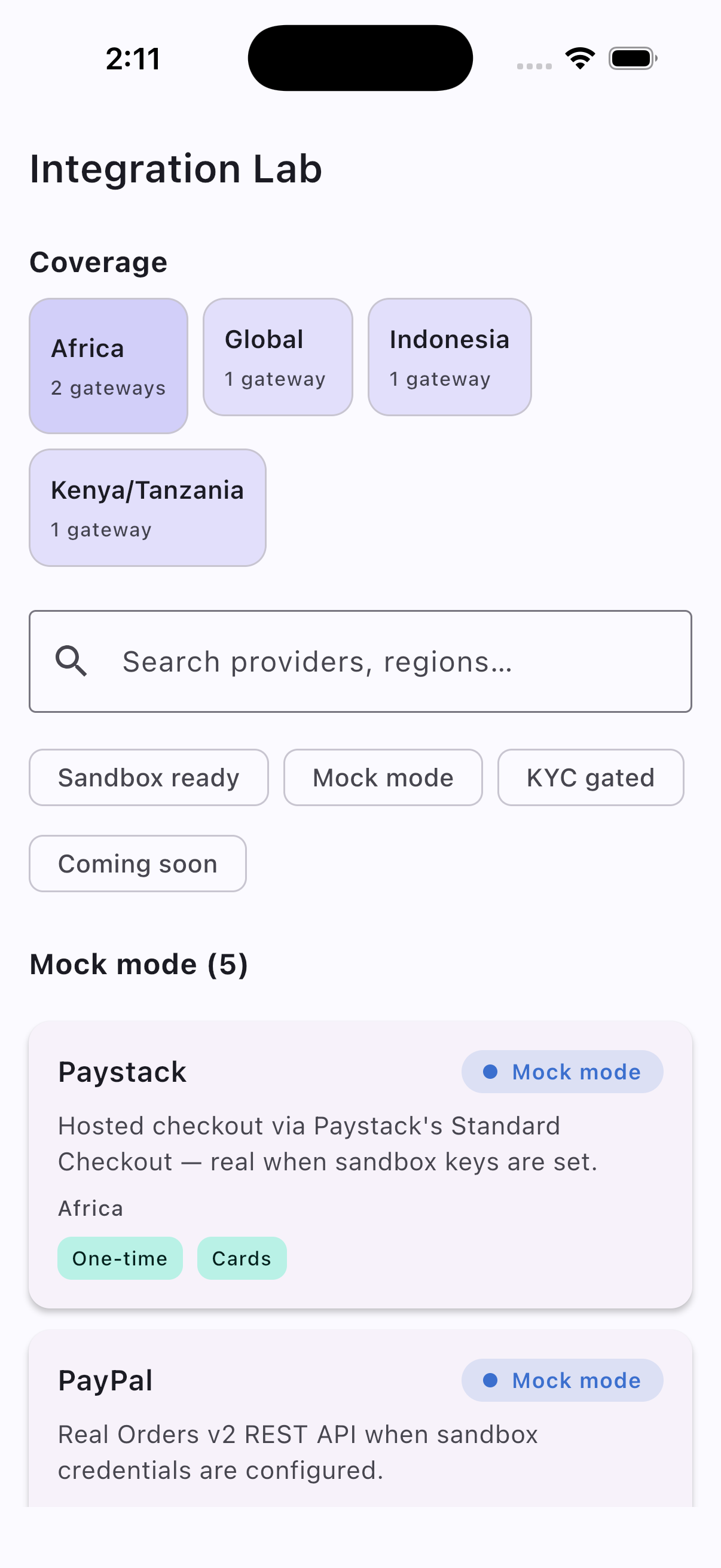

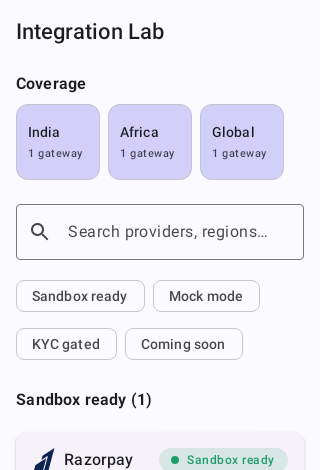

One Gradle module per native-SDK provider is contributed into a registry via Koin's getAll<PaymentGateway>(), so adding gateway N+1 touches no existing code — 15 local modules plus 25 composed from kmp-toolkit (19 of them standalone provider gateway modules). The in-app catalog spans 66 registered gateways: 7 native-SDK integrations, 47 hosted-webview gateways behind one archetype, 8 mobile-money flows and 4 catalog-only / KYC-gated entries — each with its own status badge and region.
Beyond one-shot checkout the server models payouts (/payouts — money out to a beneficiary), mandates & subscriptions (/mandates + scheduled debits and cancel), a card vault (/vault — tokenize once, charge later by id), marketplace Connect onboarding (/connect — sub-merchant KYC + split payouts) and an internal double-entry wallet ledger (/wallet — seed / debit / refund against a real running balance) — plus split payments, a two-leg orchestration that compensates if one leg fails. Ten provider modules ride these rails (Paystack, Flutterwave, Paytm, Xendit, M-Pesa, Peach, NMI, Stripe Connect, plus wallet and a record-only cash gateway), every one MOCK_MODE-honest until real sandbox keys are set.

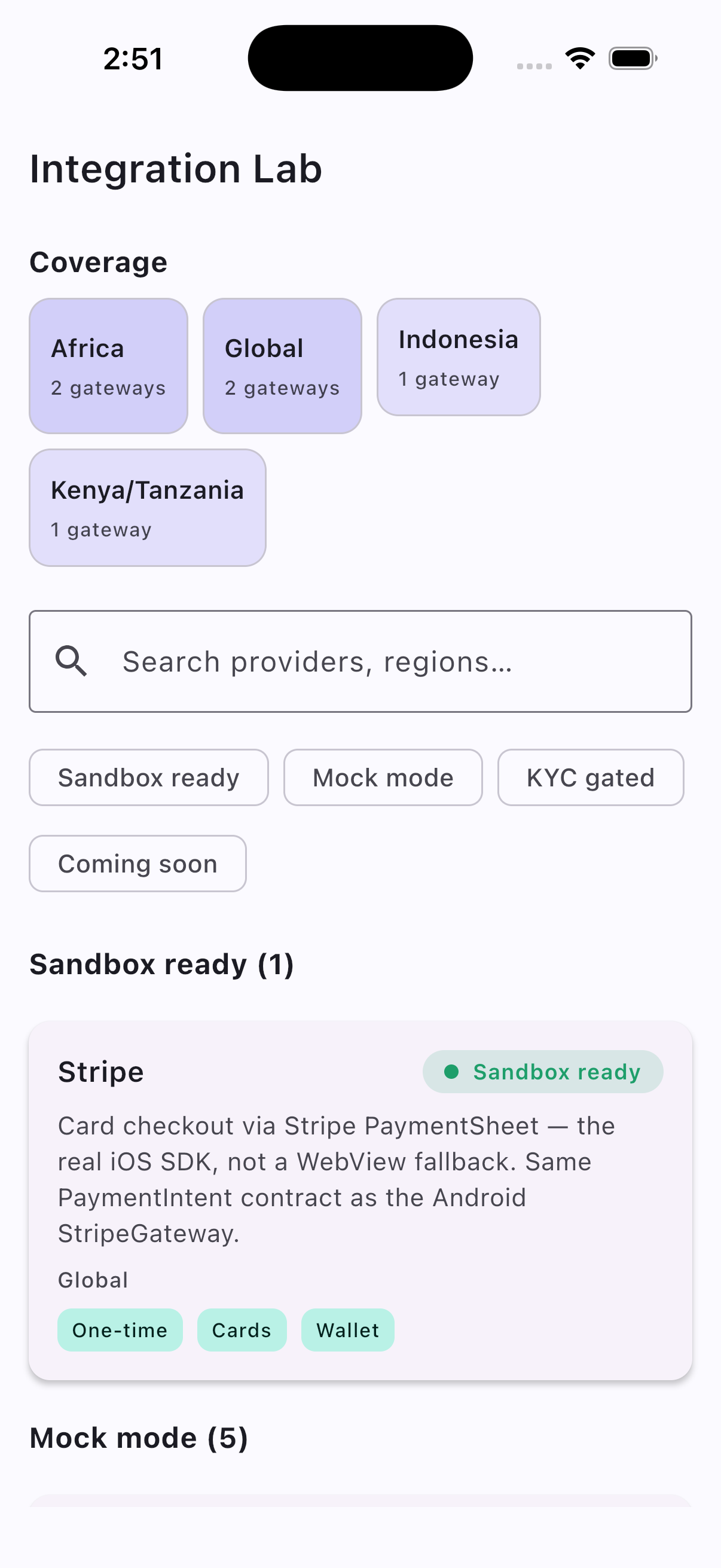

Razorpay, Cashfree, Stripe (+ Google Pay), Square, Omise and a raw UPI intent flow all implement the same tiny PaymentGateway interface. The Activity-callback SDKs are bridged into suspending coroutines by a PaymentHost that never leaks an Activity upward. A generic hosted-webview archetype covers the whole class of gateways with no native SDK behind the same contract — env-backed credentials auto-degrade from SANDBOX_READY to MOCK_MODE honestly instead of silently pretending to work.
The lifecycle is a pure (State, Event) → Effects reducer — zero coroutines/DI/IO — with the orchestrator just executing its effects. A payment's path is a recorded event log that replays byte-for-byte identically, the auditing property money movement wants. The MVI base comes from my own kmp-toolkit library, shared with other apps.
core:security — real Android Keystore AES-256-GCM at-rest encryption, FLAG_SECURE + recursive tapjacking protection, device-integrity checks (root, emulator, debugger, Frida/Xposed hook detection, SSL-pinning-bypass detection), and a certificate-pinning config, with detection kept deliberately separate from enforcement policy.
// architecture
// under the hood
// gallery

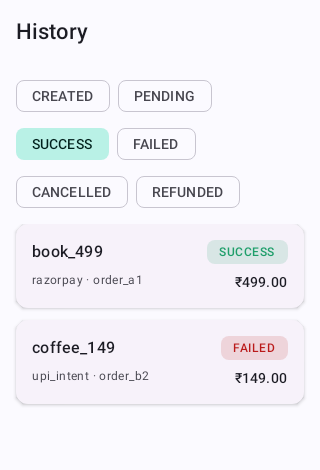

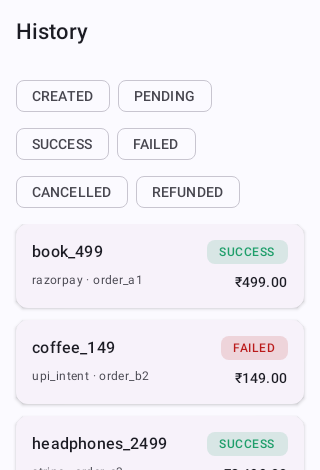

Swipe or use the arrows · tap a screen to enlarge
